Cee Shape Purlin Roll Forming Machine For Roof Panel 11m X 1.3m X 1.35m Size

Brand Name : S&G

Model Number : S&G-C Purlin

Certification : CE; ISO9001

Place of Origin : China

MOQ : 1Set

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 600Sets per year

Delivery Time : 90 working days after received your payment

Packaging Details : Nude

Model No. : S&G- Wall Angle Bar

Tile Type : Colored Glaze Steel

Use : Wall

Production Capacity : 10-15m/min

Power(W) : 4+4KW

Dimension(L*W*H) : 11mX1.3mX1.35m

Weight : 3.2T

Raw material : Cr12 Mould Steel

Thickness : 2.0-3.0mm

Control System : PLC with touch screen

Way Of Drive : Gear or Chain

Cutting type : Hydraulic cutting

Lanugage system : Chinese ,English ,

Material Yield Strength : 235-345MPa

Contact Now

Cee Shape Purlin Panel Galvanized Steel Strip Cold Roll Forming Machine

Introduction

This cold rollform machine is rolling galvanized steel strips into Cee shapped purlins for the building structure of warehouse, living room, show romm and so on. Different sizes within 100-300 can be produced by this roll former machine by the regulation of inner spacers on the rollers.

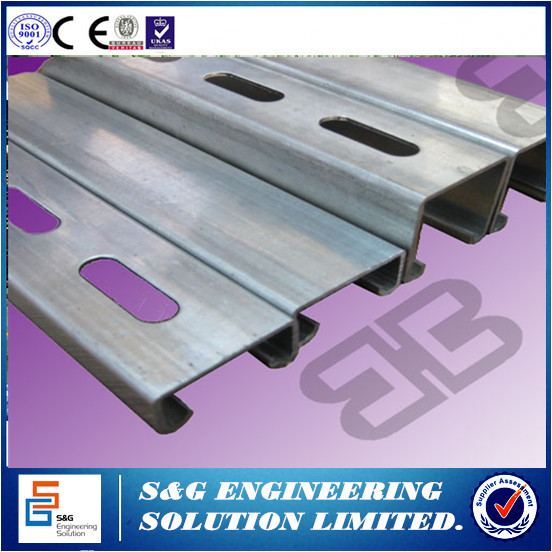

Steel Cee Shapped Purlin Samples

Cee Shape Purlin Roll Forming Machine For Roof Panel 11m X 1.3m X 1.35m Size

Technical Specifications of Cee Shape Purline Sheet Roll Former

No.	Item	Parameters
01	Material Thickness	2.0-3.0mm
02	Material Yield Strength	235-345MPa
03	Roller Material	Cr12 Mould Steel
04	Roller Shaft Material	No. 45 Steel
05	Forming Speed	around 15m/min
06	PLC Control System	Siemens or Mitsubishi
07	Main Motor Power	15Kw
08	Power Source	380V/50Hz/3Phase or designed for customers' demand
09	Installation Size	Around 15 X 2.5 X 1.5 meters
10	Required Operator	One or two operators
11	Warranty	One year

Main Components of Cee Shape Purline Sheet Roll Former

● Decoiler

● Sheet Guilding Device

● 7 Rollers Leveling Device

● Rollforming System

● Holes Punching Device

● Hydraulic Cutting Device

● Mitsubishi PLC Control Box

● Supporting Tables for Finished Cee Purlins

Working Flow

Decoiling

Guilding

Leveling

Rollforming

Punching

Cutting

Runout Tables

Manufacturing Progress of C Profile Purlin Making Machine

Cee Shape Purlin Roll Forming Machine For Roof Panel 11m X 1.3m X 1.35m Size Finished Cee Purlins Application

Cee Shape Purlin Roll Forming Machine For Roof Panel 11m X 1.3m X 1.35m Size

Profile Drawing:

Cee Shape Purlin Roll Forming Machine For Roof Panel 11m X 1.3m X 1.35m Size

Machine Picture:
Cee Shape Purlin Roll Forming Machine For Roof Panel 11m X 1.3m X 1.35m Size
